PROUDLY MADE IN THE USA
Circuit Caddy
Envision #: CC-01

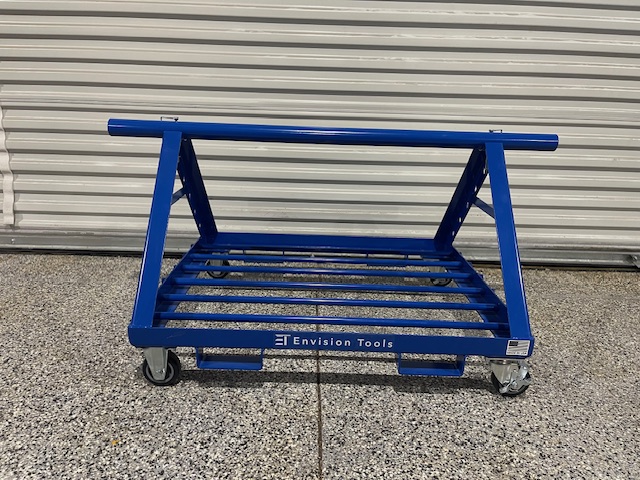

The Circuit Caddy has a never before seen A-frame built with 7 gauge steel designed to last a lifetime. It comes with (1) larger 1 7/8" SCH40 steel axle for larger spools of wire and acts as guide when pulling wire from the backside of the cart as the wire pulls straight up and over the axle keeping the wire from getting tangled up. The Circuit Caddy also comes with (6) oversized 3/4" solid steel axles for smaller #14 - #6 cable. It's unique design makes it the ultimate wire cart for any job site. It was built to handle (2) 1,000' spools of MC Cable, Romex, and THHN from #14 to #250mcm. The Circuit Caddy can also handle up to a maximum spool size of 42" in diameter so you can also maneuver a small set of feeders around a job site, up an elevator, lock the casters and start pulling. It truly is the most diverse wire cart on the market today.
Patent Pending
Features & Benefits
- Unique A-Frame low profile design built to center the weight of the wire on the cart and keep it low to the ground.
- Solid steel 7 gauge welded frame designed to last a lifetime. Just bolt on the casters, and you’re ready to pull wire.
- Multi-use universal wire cart built to handle everything from a 42” spool for feeders, MC cable, to # 14 wire for low voltage controls.
- Built with forklift pockets so you can load the cart on a reach forklift and pull wire outside for feeders, light pole bases, signage, and more.
- You can also use it as a flat cart and load up boxes of wire or fittings and move them around a job site.
- Built right here in the USA and comes with a 5 year warranty.
Specifications
Envision #
CC-01
Weight
92 lbs (with axles)
Load Capacity
1200 lbs
Diminsions
30 1/4"L X 25" H X 36 1/4" W
Wire Capacity**
#12 - 500'
#12 - 2500'
#10 - 500'
#8 - 500'
#8 - 1000'
#6 - 500'
MC - 1000"
36
6
24
15
6
6
2
**of each wire size, not all sizes at the same time
