Cable Cruiser Flat Top XL

Envision #: CCFTXL-01

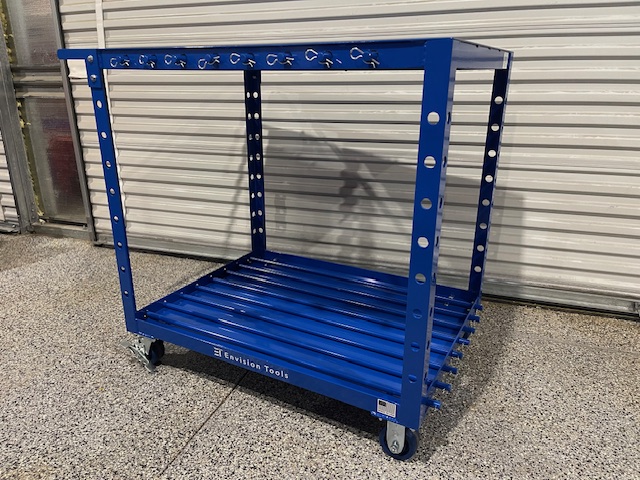

The Cable Cruiser Flat Top XL wire cart has a solid steel 7 gauge welded frame built to last a lifetime. It comes with (16) oversized 3/4" solid steel axles for smaller #14- #6 cable. You can load up wire on all four sides of the cart to balance out the weight. The 7 gauge steel bottom tray is designed to handle heavy loads without twisting or breaking like the plastic carts and also weighs down the bottom to help avoid the cart tipping over while pulling wire. The lighter flat top table is designed out of 11 gauge steel to hold a set of drawings while pulling wire or utilize as a work bench to fabricate or cut conduit and strut. These carts also come in a blue powder coat finish to protect the steel for years to come. This old school design comes with a new school twist to make it the ultimate wire pulling tool and also move material around the job site with ease.

Patent Pending

Spec Sheet Instruction Manual

Features & Benefits

Old school design reengineered just for electricians.
Solid steel 7 gauge welded frame designed to last a lifetime. Just bolt on the casters, handle, and you’re ready to pull wire.
Designed with a lighter 11 gauge flat steel top so the cart isn’t top heavy.
Built to hold a full set of plans around a jobsite and pulling wire or fabricating and cutting.
Multi-use universal wire cart built to handle large amounts of building wire ranging from #14 to #6.
Comes with 700lb heavy duty casters to move heavy loads across the jobsite without breaking.
Built right here in the USA and comes with a 5 year warranty.

Cable Cruiser Flat Top XL

Features & Benefits

Specifications

Envision #

CCFTXL-01

Weight

275 lbs (with axles)

Load Capacity

1200 lbs

Diminsions

45 1/4"L X 41" H X 31" W

Wire Capacity**

#12 - 500'

#12 - 2500'

#10 - 500'

#8 - 500'

#8 - 1000'

#6 - 500'

MC - 1000"

96

16

64

32

16

16

0

**of each wire size, not all sizes at the same time
